Technical Parameters

• Power Supply: 380VAC 50Hz

• Dimensions: 8000 (L) x 3000(W) x 2000 (H) mm

• Operation Mode: Control handle for mouse/keyboard/industrial switch/robot

• Working Environment: 0℃-45℃

• IP Rating: IP54

• Welding Precision: 0.5mm

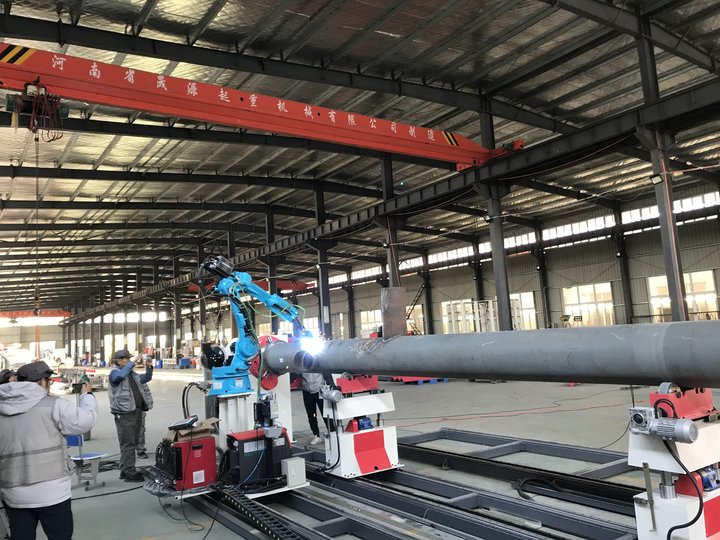

The automatic pipe welding robot is designed with a MIG welder, 6-axis robot, vision-guided system, single-axis welding positioner, pipe support unit, robotic walking rail, electrical control cabinet, welding gun cleaner, etc. Due to the vision-guided system, automatic welding of pipe-pipe intersection and circumferential welding between pipes and fittings can be precisely performed.

Features

• No vibration will be generated during the welding process, and a steady, consistent motion is always maintained, which delivers high quality welds with a good appearance.

• The welding automation equipment ensures safe operation, and ergonomic comfort. It greatly lessens the need for operator’s exposure to environments with loud noise or high temperature.

• Welding automation greatly improves welding efficiency, which is not influenced by the operator’s skill.
