pipe beveling refers to the groove of a certain geometric shape which is machined and assembled into the welding part to be welded.beveling is mainly for welding parts, to ensure the degree of welding, under normal circumstances with machining method machining out of the shape, requirements are not high when you can cut.
beveling is mainly for welding, ensure welding degree, normally with machining method of processing the type surface, when demand is not high, also can cutting (if is a kind of welding seam, the ultrasonic flaw detection, only with machining method), but need to remove oxide slag, according to the need, have X type, V type, u-shaped type, etc., but tend to retain a certain blunt edge.
Portable and bench pipe beveling machine:
This kind of pipeline equipment is made for beveling processing of pipeline in the installation site. It adopts the combination of imported high-torque motor and self-made light mechanism reduction box, which can be used for beveling of pipeline of various materials.Desktop machine is suitable for large quantities of material preparation beveling processing, fast and efficient.
our company has 6 kinds of beveling machines for your reference.
Differential Pipe Cutting & Beveling Machine;High Speed Pipe End Beveling Machine (Top and Bottom Asynchronous Clamping);Numerical Control Pipe End Beveling Machine (Top and bottom Asynchronous Clamping);High Speed Pipe End Beveling Machine (Left & Right Synchronous Centering Clamping);Numerical Control Pipe End Beveling Machine (Left & Right Synchronous Centering Clamp);High Speed Pipe End Beveling Machine (Top & Bottom Synchronous Centering Clamping);Numerical Control Pipe End Beveling Machine (Top & Bottom Synched Centering Clamp).

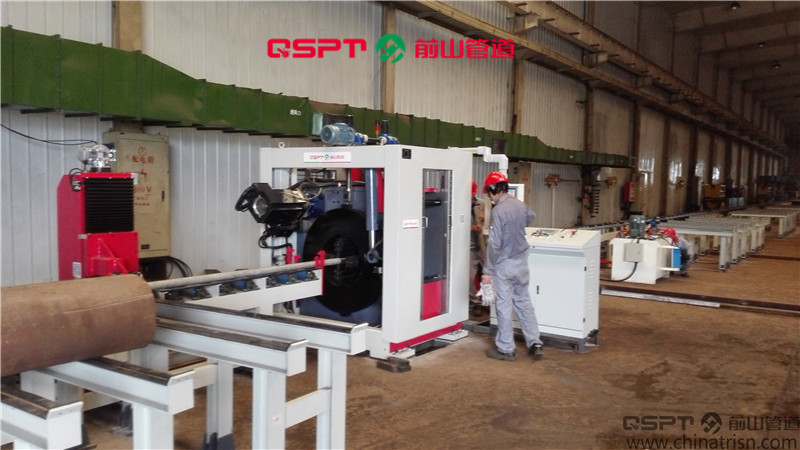

especially the cutting & beveling all-in-one operation. synchronously centering clamping with drive by the front and back two groups of hydraulic cylinders cam mechanism; cutting and beveling blade disc rotatesat high speed around the pipe center; when generate speed difference from 2 cutter disc of internal and external are respectively drive by 2 servo motors, the cutting feed gear drive mechanism began to motion, to drive cutting tools and beveling tools automatic radial cutting feed; its equipped with spray cooling device; cutting and beveling blade automatically feed in opposite direction; Preset bevel parameters throughPLC touch screen human-machine interface ; Four-column& four linear guide rail & two lifts to compose lifting systemenabling automatically mechanical centering; cuttingand beveling in one operation ( simultaneously producing two bevels); extremely high beveling efficiency; applicable for large amount of STD wall thickness （≤25mm）pipe bevel machining.
