First single- or three-phase power Millermatic that welds
material from 22 gauge to 1/2 in thick in a single pass. Perfect for fabrication, manufacturing, maintenance and repair.

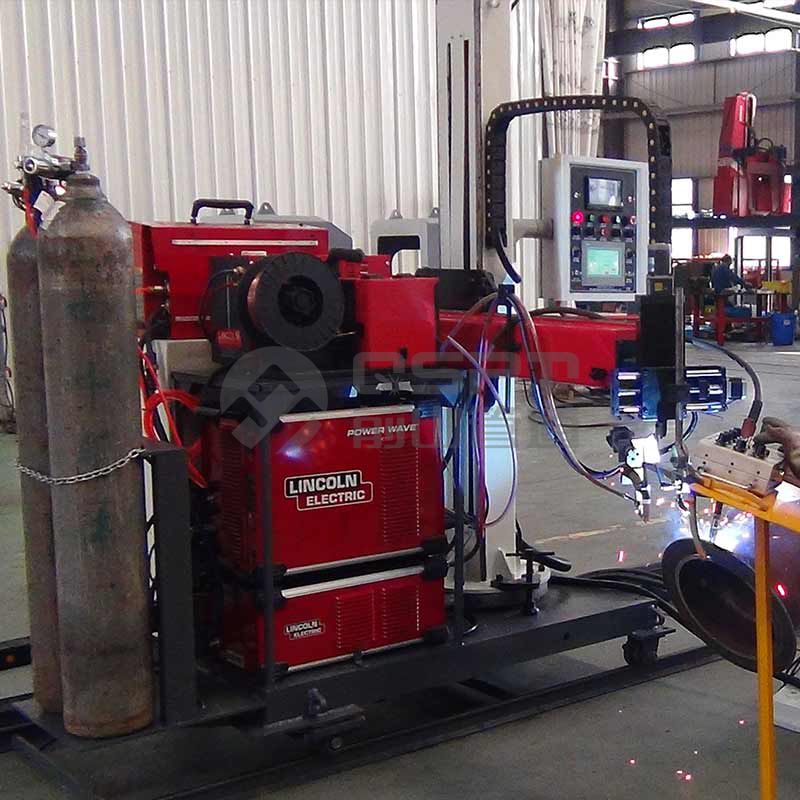

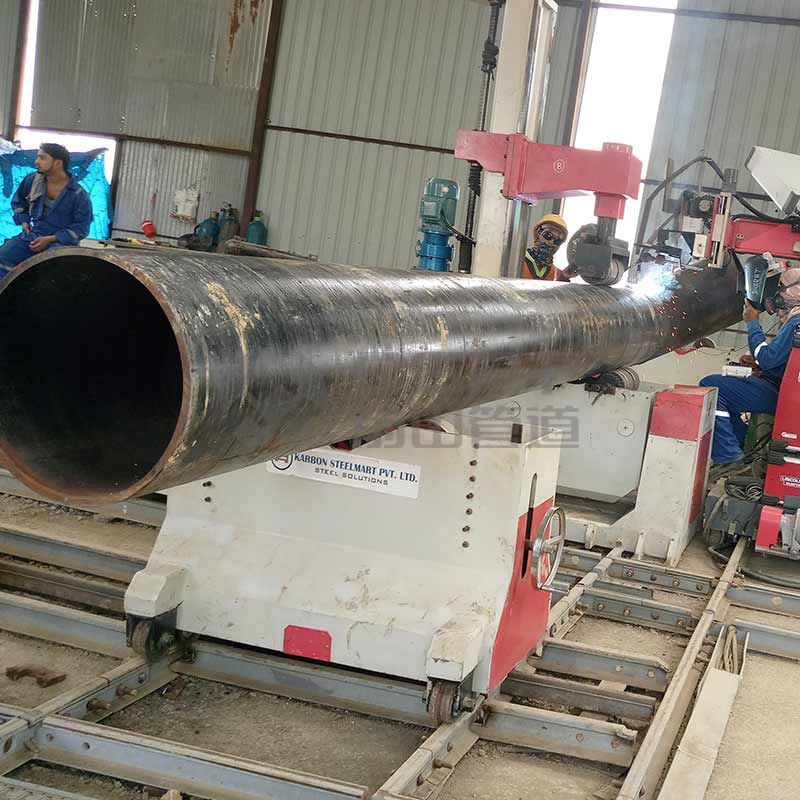

Performance Features: Suitable for the pipe spool with fillet weld(such as slip-on flange); able toswing the rotator for multi-angle fillet welding;equipped with: one swinging welding rotator; two movable trolleys with supporting wheels; one traveling cantilever welding trolley;standard configuration: Lincoln CV500 inverter welding power;using QSPT's root welding technology for MIG root,fill in and cap welding; operation through a streamline welding control cabinet + an aluminum alloy wire control box.
Rotator drive, rotator press down, cantilever trolley welding
One-time clamping, multi-pass welding

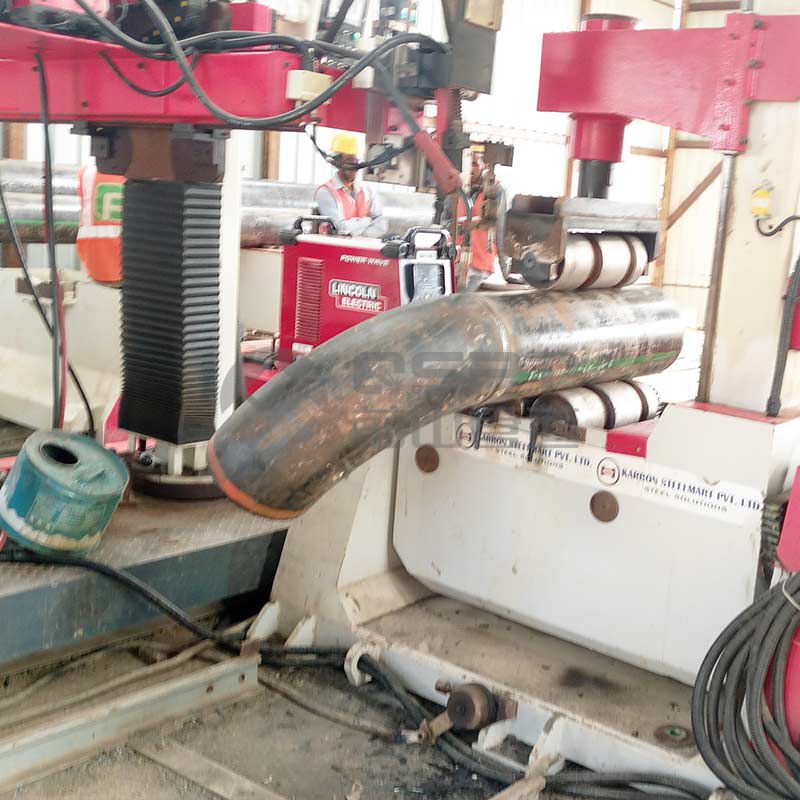

Fillet weld, ship-shaped weld
Capable of certain 2D & 3D weld
Standard configuration: Lincoln CV500
MIG
Max. DN600
Max. 300DI/D（MIG+ MIG）
Max. equivalent to 6 welders
