First single- or three-phase power Millermatic that welds
material from 22 gauge to 1/2 in thick in a single pass. Perfect for fabrication, manufacturing, maintenance and repair.

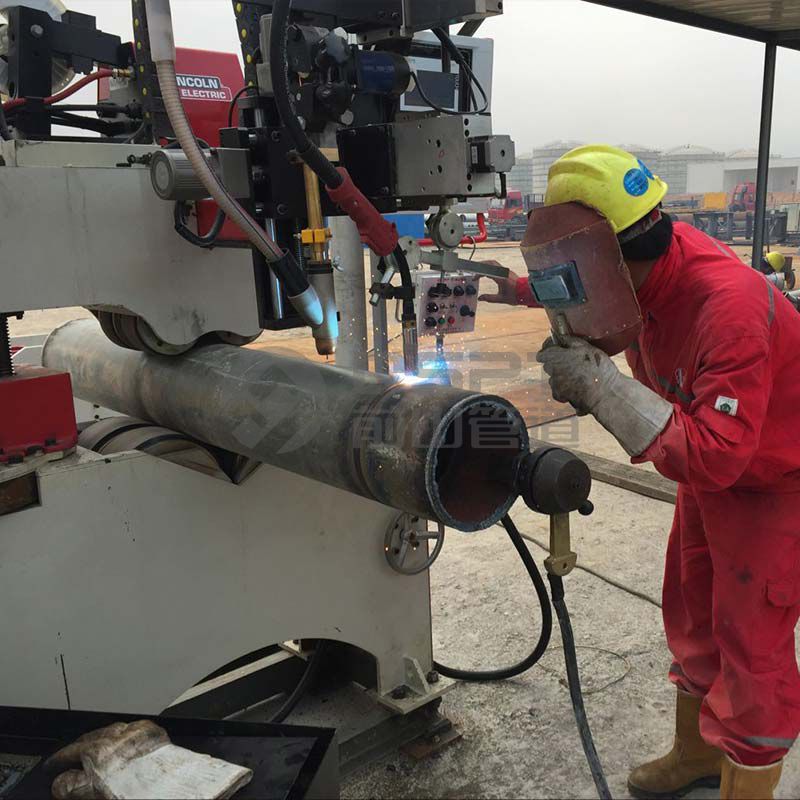

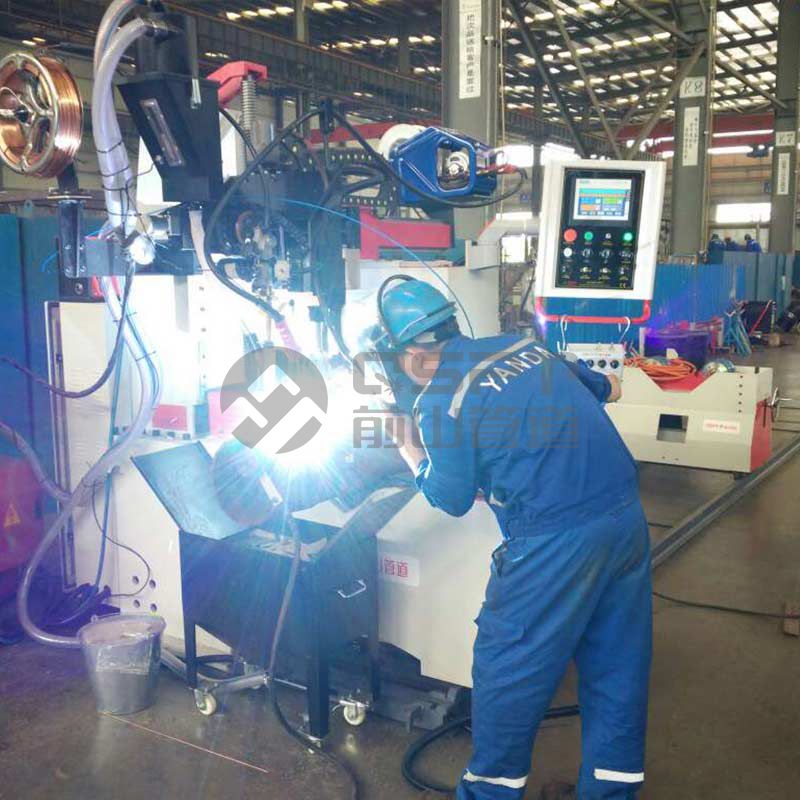

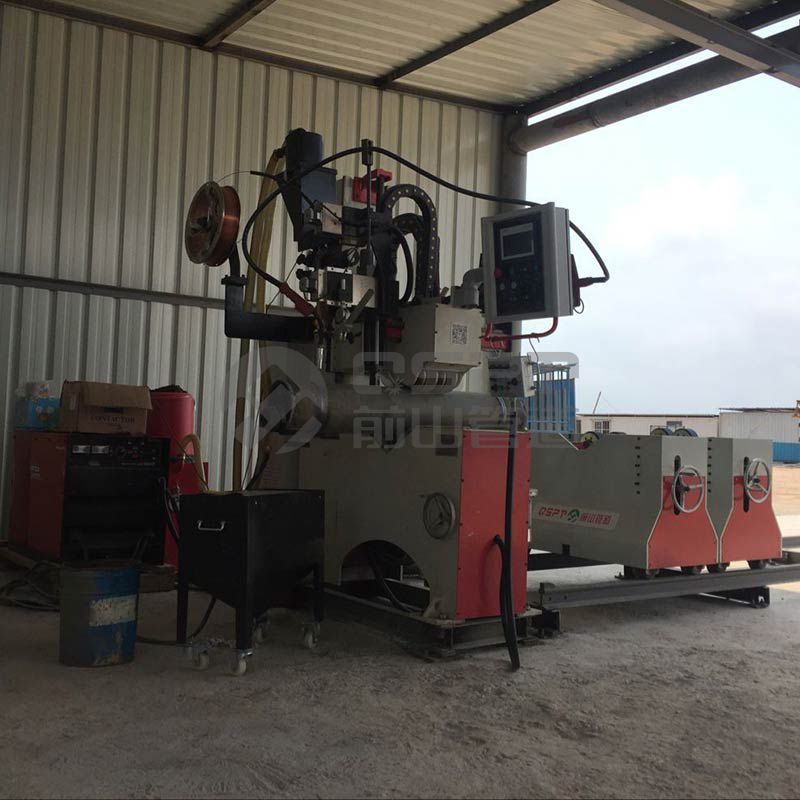

Performance Features: The most sturdy model for welding heavy wall thickness pipes; suitable for large batch of heavy wall thickness pipe fabrication; twosets of polyurethane coated driving wheels(two pcs per set, totally four pcs); driven by motor and reducer; twosets of polyurethane coated hold-down wheels(two pcs per set, totally four pcs); held-down by embedded screw rod mechanism; built-in drivingwheel and exposed driving system;fast positioning weld with longitudinal telescope boom;standard configuration: Lincoln Flextech650 multi-function welding power; TIG/MIG root welding with QSPT's root welding technology; TIG/MIG/SAW fill-in and cap welding;operation with a streamline welding control cabinet + an aluminum alloy wire control box.
20 years experiences, classical machine model with new elements implemented
Pipe automatic welding expert (dedicated machine)
Rotator drive, rotator press down, telescopic boom welding
Super torque: 13200N.m
Standard configuration: Lincoln Flextech650
TIG/MIG/ SAW
Max. DN1600
Max. 60mm
Max. 400DI/D（MIG+ SAW）
Max. equivalent to 8 welders
High cost effectiveness
